An oxygen concentrator usually uses less electricity than large home appliances such as central air conditioning, but it can still create a noticeable monthly cost because many units run for long hours or even 24/7.
The short answer: a typical 5L home oxygen concentrator often uses about 290–350 watts, while a higher-flow 10L oxygen concentrator may use around 450–650 watts, depending on the model, pressure, flow setting, and technology design. Portable oxygen concentrator electricity use is usually lower, especially for pulse-dose models, but actual power draw depends on whether the unit is running, charging, or both.
For example, Drive DeVilbiss lists its 5-liter concentrator at 310 watts average, while a Philips Respironics EverFlo specification sheet lists 350 watts average power consumption. A CAIRE NewLife Intensity 10 model lists 590 watts power draw for 10 LPM use.
For monthly cost estimates in this article, we use $0.19 per kWh as an example electricity rate, close to the U.S. EIA’s reported residential average of 18.83 cents/kWh in March 2026. Your local rate may be higher or lower, so always check the electricity price on your own bill.
It depends on the machine size and daily running hours. A portable pulse oxygen concentrator used part-time may have a small impact on the electricity bill. A stationary 5L or 10L oxygen concentrator running all day and night can become a meaningful operating cost.
For home users, this matters because oxygen therapy may be used for many hours per day under medical guidance. For B2B buyers, power consumption affects total cost of ownership, especially when purchasing multiple machines for a clinic, homecare rental fleet, veterinary hospital, rehabilitation center, or wellness facility.
| Oxygen Concentrator Type | Typical Power Range | 24/7 Monthly Energy Use | Estimated Monthly Cost at $0.19/kWh |
|---|---|---|---|
| Portable pulse oxygen concentrator | 40–120 W | 29–86 kWh | $5–$16 |
| 5L home oxygen concentrator | 290–350 W | 209–252 kWh | $40–$48 |
| 8L oxygen concentrator | 400–500 W | 288–360 kWh | $55–$68 |
| 10L oxygen concentrator | 450–650 W | 324–468 kWh | $62–$89 |
These are estimates. Actual oxygen concentrator electricity cost depends on the rated watts, hours of use, electricity rate, and whether the machine runs continuously or intermittently.
When people ask “how many watts does an oxygen concentrator use,” they are usually asking about running watts, not startup surge. Running watts show the power the machine consumes during normal operation.
A 5L oxygen concentrator is one of the most common choices for home oxygen therapy, clinics, and general medical oxygen supply. Many 5L stationary units fall around 300–350 watts.
Examples from published specifications include:
| Example 5L Model Type | Listed Flow Range | Listed Power Consumption | What It Means for Buyers |
|---|---|---|---|
| Drive DeVilbiss 5L | 0.5–5 LPM | 310 W average | Efficient option for standard 5L continuous flow needs |
| Philips Respironics EverFlo | 0.5–5 LPM | 350 W average | Common 5L reference point for home oxygen use |
| Low-power 5L class models | Around 1–5 LPM | Around 290–320 W | Useful for fleets where electricity cost matters |
For home oxygen concentrator electricity use, a 310W machine running 24 hours per day uses:
0.310 kW × 24 hours × 30 days = 223.2 kWh/month
At $0.19/kWh, that equals about:
223.2 × $0.19 = $42.41 per month
A 10L oxygen concentrator usually consumes more electricity because it produces higher oxygen flow and may require a stronger compressor. Many 10L units are used in clinics, long-term care, veterinary applications, oxygen supply for certain hyperbaric chamber support setups, and high-flow commercial environments.
A 10L concentrator using 590W continuously would use:
0.590 kW × 24 hours × 30 days = 424.8 kWh/month
At $0.19/kWh:
424.8 × $0.19 = $80.71 per month
For B2B buyers, the difference between a 5L and 10L concentrator is not only the purchase price. Electricity cost, heat output, maintenance load, noise level, and backup power requirements should also be considered.
Portable oxygen concentrators generally use less electricity than large stationary units, especially pulse-dose models. However, portable oxygen concentrator electricity use can vary because the device may be:
running from AC power, charging a battery, running and charging at the same time, or operating at a higher pulse setting.
Many portable concentrators are designed for mobility rather than high continuous oxygen output. CAIRE’s FreeStyle Comfort, for example, is a pulse-dose portable oxygen concentrator with up to 1050 mL/min oxygen output and battery operation options. CAIRE also notes that a prescription is required for purchase of that device.
For medical use, the right device should be selected according to the user’s prescribed oxygen requirement and professional guidance, not electricity cost alone.

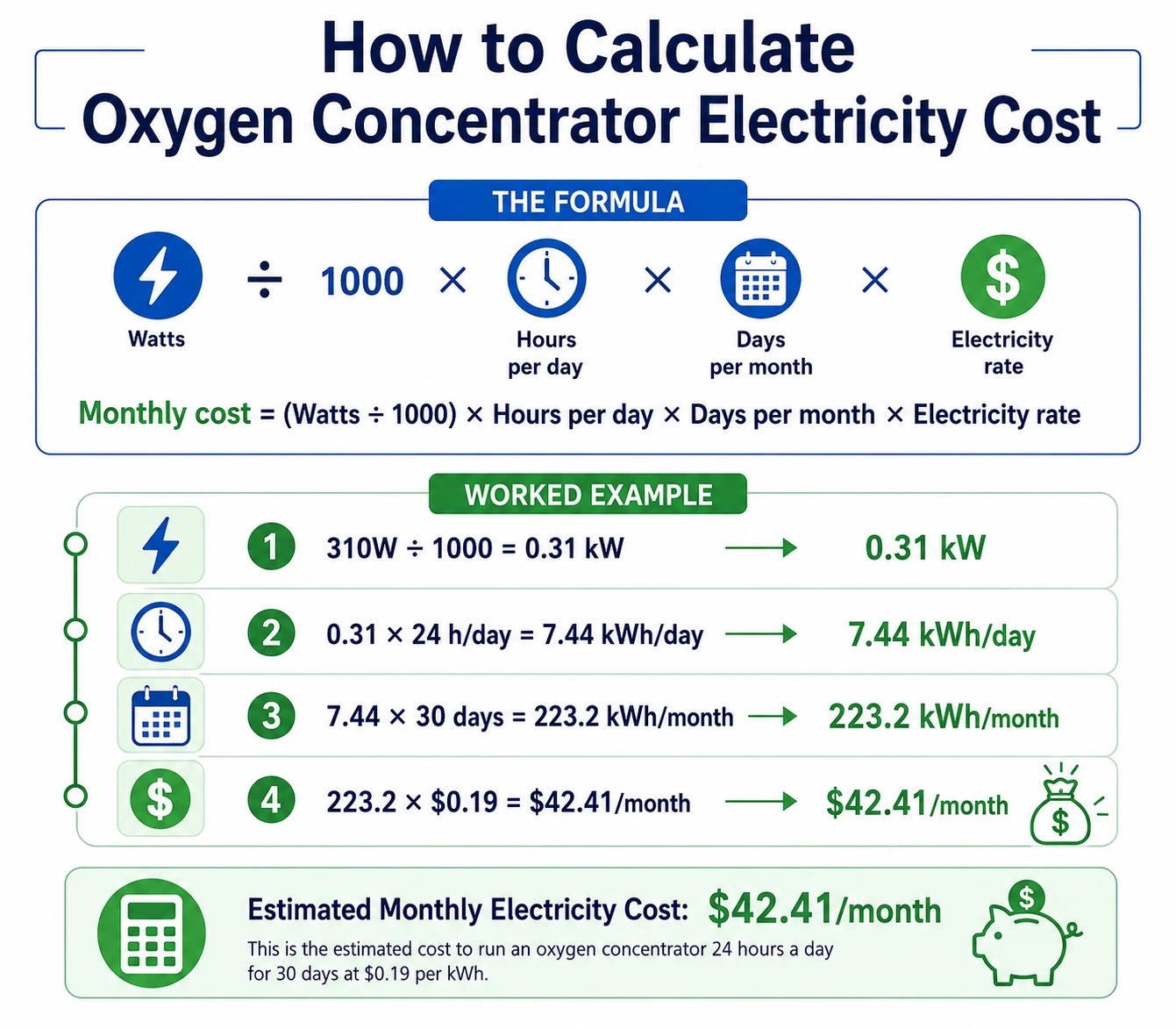

Here is the simplest formula:
Monthly electricity cost = watts ÷ 1000 × hours per day × days per month × electricity rate
Assume:
Calculation:
310 ÷ 1000 × 24 × 30 × 0.19 = $42.41/month
Assume:
Calculation:
590 ÷ 1000 × 24 × 30 × 0.19 = $80.71/month
Assume:
Calculation:
100 ÷ 1000 × 8 × 30 × 0.19 = $4.56/month
This is why portable units often have a much lower monthly electricity cost, although they may not replace a stationary continuous-flow concentrator for all users.
Use the table below to estimate oxygen concentrator electricity cost at different local electricity rates.
| Machine Power | Monthly kWh at 24/7 Use | Cost at $0.12/kWh | Cost at $0.19/kWh | Cost at $0.30/kWh |
|---|---|---|---|---|
| 100 W | 72 kWh | $8.64 | $13.68 | $21.60 |
| 300 W | 216 kWh | $25.92 | $41.04 | $64.80 |
| 350 W | 252 kWh | $30.24 | $47.88 | $75.60 |
| 500 W | 360 kWh | $43.20 | $68.40 | $108.00 |
| 590 W | 424.8 kWh | $50.98 | $80.71 | $127.44 |
| 650 W | 468 kWh | $56.16 | $88.92 | $140.40 |
This table is useful for distributors and clinics comparing multiple machines. For example, a homecare provider with 50 units in the field should compare annual energy impact, not just the unit price.
Several factors can change oxygen concentrator watts and real-world electricity use.
Flow capacity: A 10L unit normally needs more power than a 5L unit. Higher flow requires more air compression and oxygen separation.
Operating pressure: Applications that need higher pressure may require more energy.
Compressor design: Efficient compressor and sieve bed design can reduce power consumption while maintaining oxygen purity.
Flow setting: Some concentrators use similar power across multiple settings, while others consume slightly less at lower flows.
Maintenance condition: Dirty filters, blocked air intake, poor ventilation, or aging components can make the unit work harder.
Environment: High temperature, poor airflow, dust, and unstable voltage can affect performance and long-term reliability.
Usage schedule: A machine used 8 hours per day costs far less than the same machine used 24 hours per day.
When choosing an energy efficient oxygen concentrator, do not only look for the lowest wattage. Look for the best match between oxygen output, oxygen concentration, reliability, service support, and total operating cost.
For homecare and medical supply buyers, compare these points:
| Buying Factor | Why It Matters | What to Check |
|---|---|---|
| Rated watts | Directly affects monthly electricity cost | Product label, manual, specification sheet |
| Oxygen flow | Must match user or facility requirement | 5L, 8L, 10L, dual-flow, or custom solution |
| Oxygen concentration | Key performance indicator | Typical purity range at rated flow |
| Noise level | Important for home, clinic, and rehab settings | dB rating |
| Maintenance | Affects long-term cost | Filter schedule, sieve bed life, service access |
| Backup power compatibility | Important for continuous use | Generator, UPS, inverter, or emergency plan |
| Supplier support | Critical for B2B buyers | Warranty, spare parts, OEM/ODM support |
For standard medical environments, explore Medical Oxygen Concentrators. For mobile use, compare Portable Oxygen Concentrators and Pulse Oxygen Concentrators. For clinics treating animals, review Veterinary Oxygen Concentrators. For wellness, sports, and facility applications, consider related systems such as EWOT Systems, Oxygen Concentrators for Hyperbaric Chambers, and Hypoxic Generators.
Watts show how much power the machine uses at one moment. kWh shows total electricity used over time. Your electricity bill charges by kWh, not watts.
A 300W appliance may not sound large, but if it runs all day, it uses 216 kWh in a 30-day month.
Electricity rates vary by country, region, utility, and commercial tariff. Always use the rate from the actual electricity bill.
Low wattage is good, but the concentrator must still provide the required oxygen flow and concentration. Medical oxygen use should follow a doctor’s or qualified professional’s guidance.
For users who depend on oxygen therapy, power outage planning is important. B2B buyers should consider backup cylinders, generators, UPS systems, or other emergency oxygen plans according to local regulations and professional guidance.
For rental fleets, electricity use affects customer satisfaction. A quieter, lower-watt 5L unit may be easier to place in homes where electricity cost and noise are concerns. Looking for efficient 5L or 10L units for your homecare fleet? Contact Olive to compare oxygen output, wattage, warranty, and bulk supply options.
Clinics often need reliable continuous-flow oxygen concentrators for daily operation. A 10L unit may be suitable where higher oxygen flow is needed, but buyers should plan for higher electricity cost and backup power. Need help matching oxygen concentrator capacity to clinical usage? Olive can recommend medical oxygen concentrator options based on flow, pressure, and operating schedule.
Veterinary oxygen concentrators are commonly used with oxygen cages, anesthesia support, and recovery areas. Power consumption becomes more important when machines run for long shifts.
EWOT systems, oxygen concentrators for hyperbaric chambers, and wellness oxygen applications may require higher oxygen volume or multiple devices. In these cases, total system power consumption should be calculated before installation. Planning an EWOT, hyperbaric support, or oxygen wellness setup? Ask Olive for a system-level recommendation, including oxygen flow, concentrator capacity, and estimated electricity use.
A 300W oxygen concentrator running 24 hours uses 7.2 kWh per day. A 590W oxygen concentrator running 24 hours uses 14.16 kWh per day.
A portable unit used part-time usually does not use much electricity. A 5L or 10L stationary oxygen concentrator running 24/7 can noticeably increase the monthly electricity bill.
Many 5L oxygen concentrators use around 290–350 watts, depending on the model and design.
Many 10L oxygen concentrators use around 450–650 watts. Some high-pressure or heavy-duty units may consume more.
Use this formula: watts ÷ 1000 × hours per day × days per month × electricity rate.
Usually yes, especially pulse-dose portable models. However, the right device depends on prescribed oxygen needs, not electricity cost alone.
The best choice is the unit that meets the required oxygen flow and concentration with the lowest practical wattage, reliable performance, good service support, and safe operation for the intended application.
